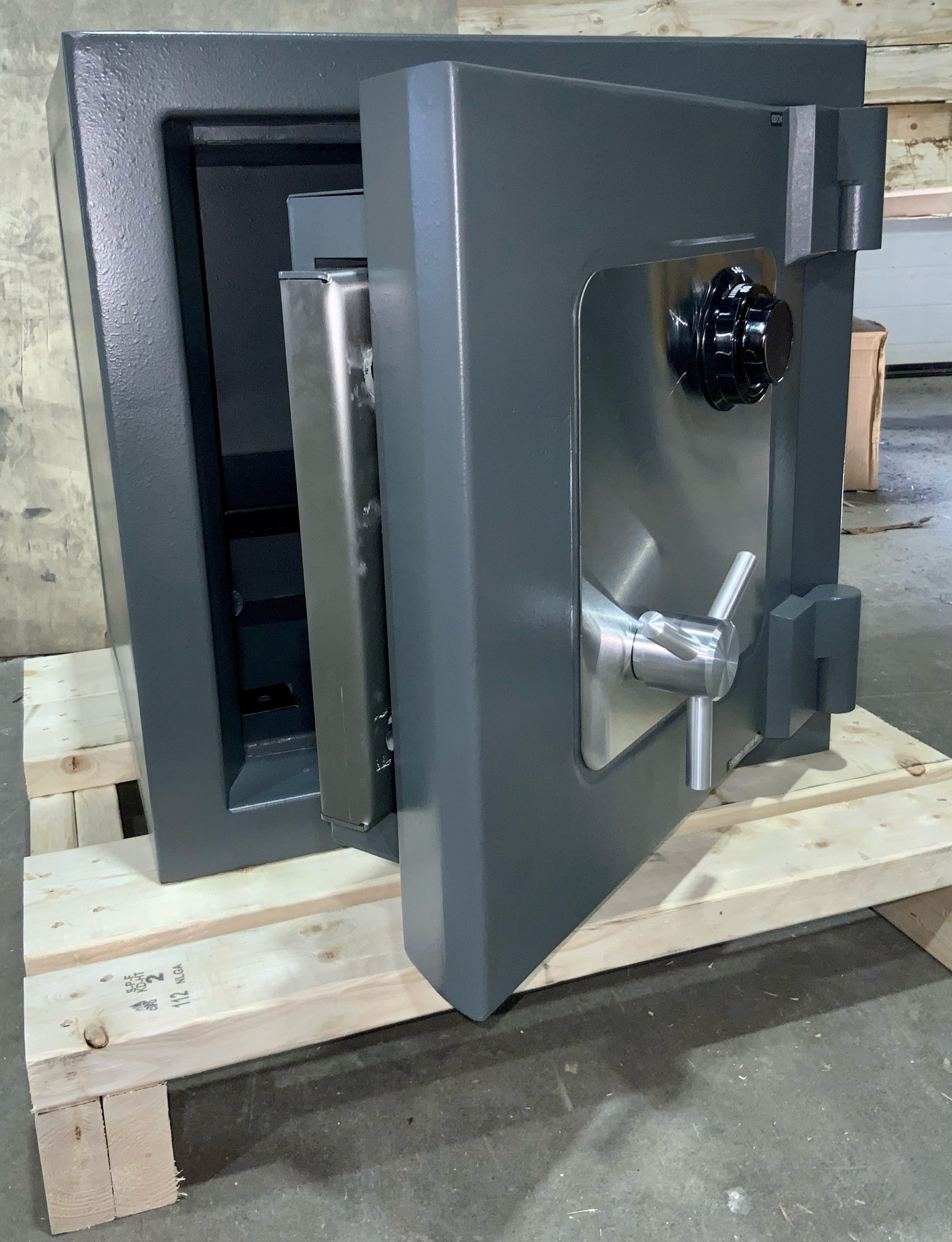

Model shown is provided for illustrative purposes only.

TL-30 (Composite)

The TL-30 safe offers the ultimate in TL30 protection. With its high-tech 2 1/2” thick body and 5 1/2″ thick door utilizing our proprietary barrier material, modern high-strength alloy, sophisticated glass relocking system, high security combination locks and massive boltwork, theses safes are our latest generation of TL30’s to successfully receive UL approval.

Request a quote

Specifications

Two-Hour Fire Resistance

The Duravault TL30 has been successfully tested by an independent laboratory and boasts a two-hour manufacturer’s fire rating for your peace of mind.

Locks

UL listed Group 2M combination lock with spy-proof dial.

Boltwork

Massive full length stainless steel locking bar.

Glass Relockers

A sophisticated tempered glass relock system activates multiple independent relockers to protect against drilling, torch and explosive attacks.

Options

  • Door contact and heat sensor
  • Seismic detector (Sentrol SP3237)
  • Key locking dial for combination lock
  • Secondary comb. Lock S&G GR 2M (#6630 lock #D220 & R167 dial & ring)
  • Secondary key lock S&G (#6870 with 2 keys)
  • Primary comb. Lock S&G GR1 (#8550 lock #D540 & R167 dial & ring)
  • Primary electronic lock LaGard Basic (#4200-SB lock #3715-TB key pad)
  • Primary electronic lock ComboGard Pro (#4300U02U-SB lock #3000 key pad)
  • Primary electronic lock ComboGard Pro (#4300U02U-SB lock #3050 key pad #4001 large batery box)
  • Primary electronic lock AuditGard (#4300-SB lock #3750-K key pad)
  • Two movements timelock with reset s&G #6280-02 or TI-2400-104Y

Dimensions

Interior Dimensions (in.) Exterior Dimensions (in.) Interior Weight
Model # Height Width Depth Height Width Depth Ft3 lb.
CS-M261817-L30 26″ 18″ 17″ 31″ 23″ 25-1/2″ 4.4 1,035 lbs
CS-M382220-L30 38″ 22″ 20″ 43″ 27″ 28-1/2″ 9.7 1,530 lbs
CS-M502220-L30 50″ 22″ 20″ 55″ 27″ 28-1/2″ 12.7 1,940 lbs
CS-M502620-L30 50″ 26″ 20″ 55″ 31″ 28-1/2″ 15 2,220 lbs
CS-M622220-L30 62″ 22″ 20″ 67″ 27″ 28-1/2″ 15.8 2,300 lbs
CS-M673120-L30 67″ 31″ 20″ 72″ 36″ 28-1/2″ 24 2,955 lbs
CS-M673620-L30 67″ 36″ 20″ 72″ 41″ 28-1/2″ 27.9 3,300 lbs
CS-M673626-L30 67″ 36″ 26″ 72″ 41″ 34-1/2″ 36.3 3,785 lbs
CS-M723620-L30 72″ 36″ 20″ 77″ 41″ 28-1/2″ 30 4,050 lbs
CS-M723623-L30 72″ 36″ 26″ 77″ 41″ 34-1/2″ 39 3,830 lbs
