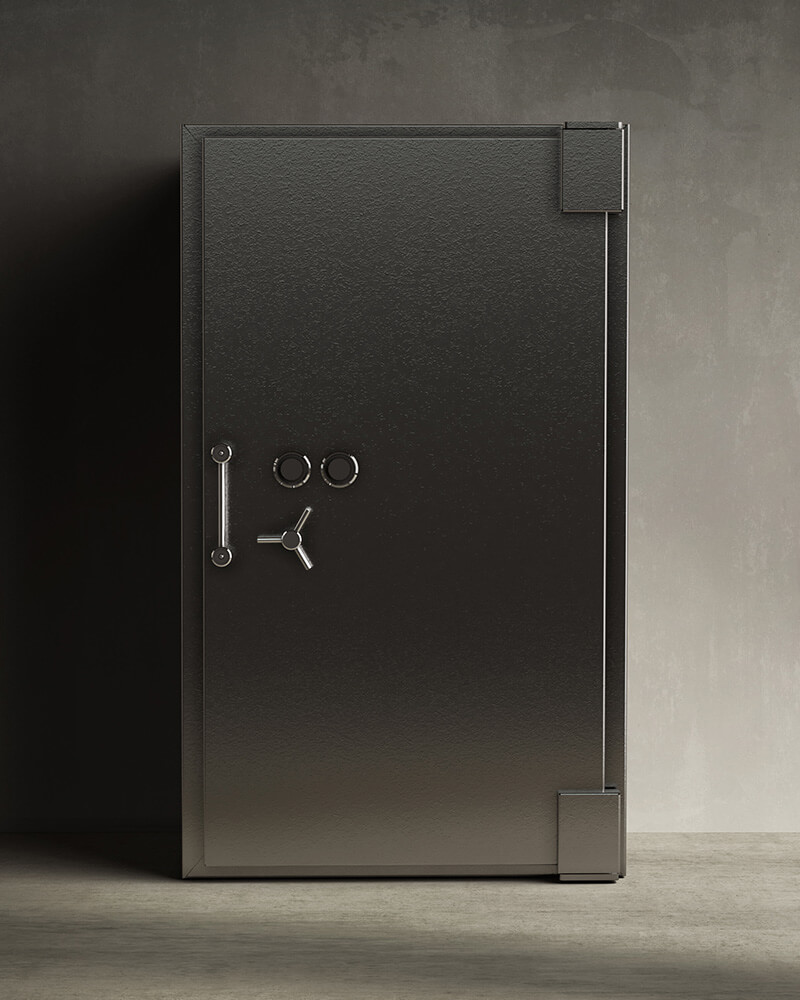

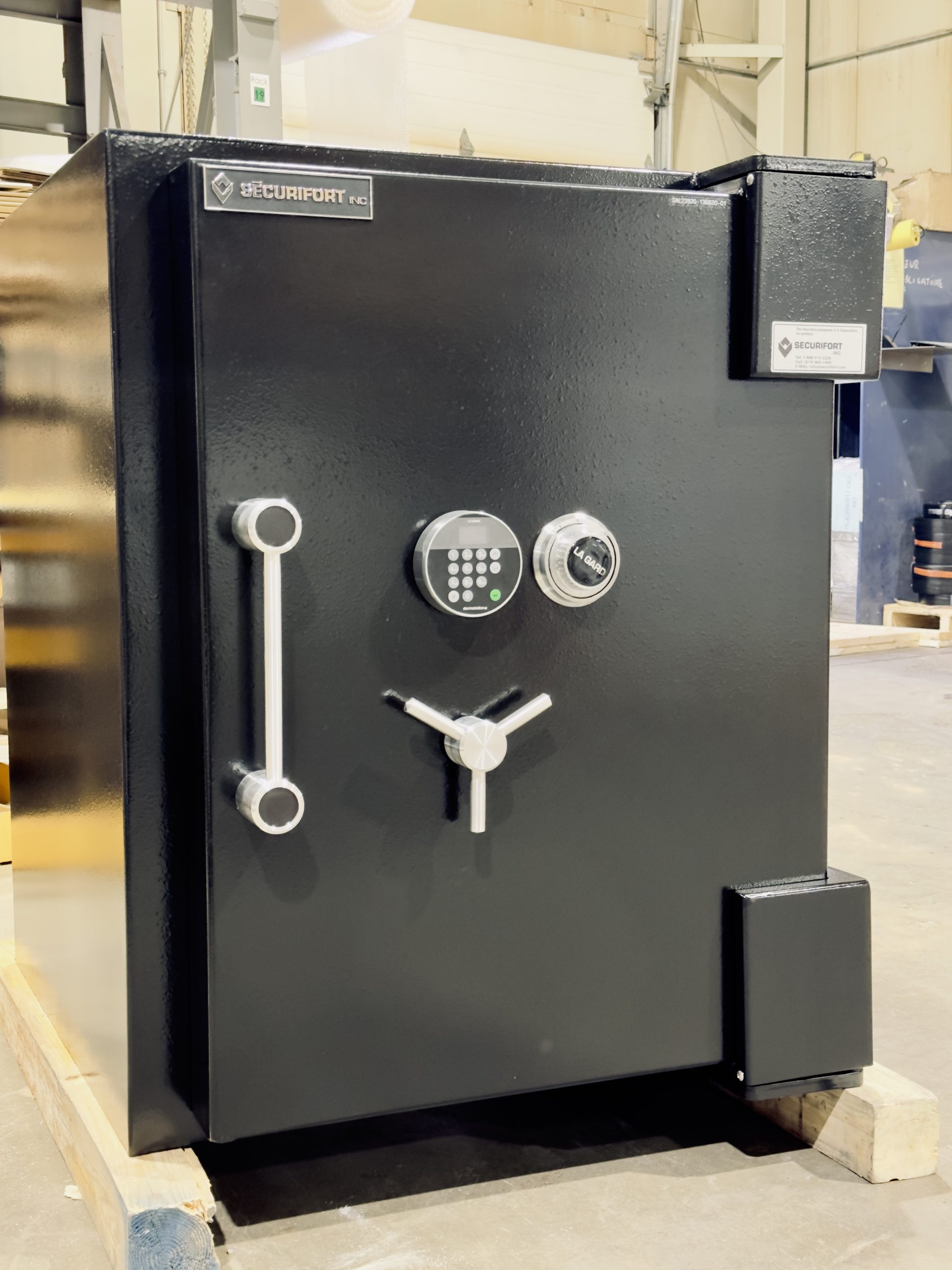

TRTL30

Experience unparalleled protection with the TRTL30 safe, UL certified, offering exceptional durability and advanced features to safeguard your most treasured possessions from theft and fire.

Request a quote

Specifications

Door & Body

The door has a thickness of 8 3/4″. The safe has a total body thickness of 5″. High strength alloy and our proprietary aluminum barrier material combine to provide multi-layer protection designed to withstand the most sophisticated attack by tools, torch or explosives.

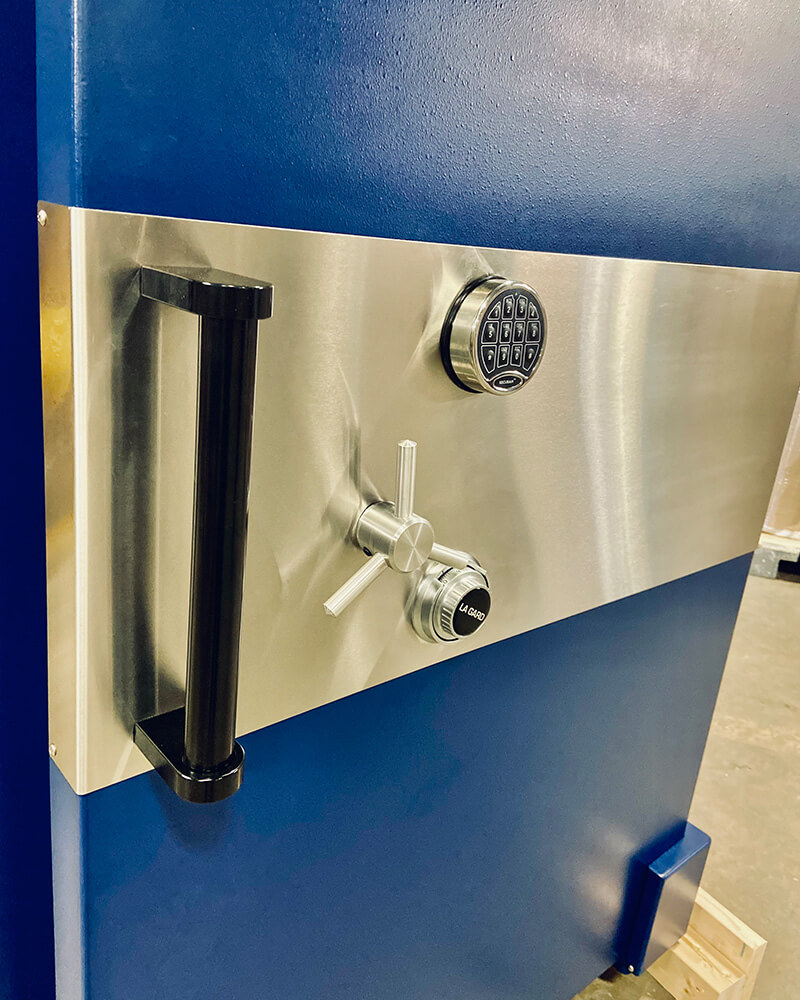

Locks

UL listed manipulation resistant Group 1 combination lock with spy proof dial. door prepped to receive a timelock

Boltwork

Massive full length, heavy duty stainless steel locking bar on opening side & one fixed bar on hinge side

Glass Relockers

A large tempered glass plate is used to protect vital areas of the locking mechanism. If attacked, the glass will shatter and cause the relockers to activate thereby preventing the safe from being opened.

Options

  • Door contact and heat sensor
  • Seismic detector (Sentrol SP3237)
  • Key locking dial for combination lock
  • Secondary comb. Lock S&G GR 2M (#6630 lock #D220 & R167 dial & ring)
  • Secondary key lock S&G (#6870 with 2 keys)
  • Primary comb. Lock S&G GR1 (#8550 lock #D540 & R167 dial & ring)
  • Primary electronic lock LaGard Basic (#4200-SB lock #3715-TB key pad)
  • Primary electronic lock ComboGard Pro (#4300U02U-SB lock #3000 key pad)
  • Primary electronic lock ComboGard Pro (#4300U02U-SB lock #3050 key pad #4001 large batery box)
  • Primary electronic lock AuditGard (#4300-SB lock #3750-K key pad)
  • Two movements timelock with reset s&G #6280-02 or TI-2400-104Y

Dimensions

Interior Dimensions (in.) Exterior Dimensions (in.) Interior Weight
Model # Height Width Depth Height Width Depth Ft3 lb.
CS-Q272020-R30 27” 20” 20” 39 1/2” 32” 34 3/4” 6.3 3430 LBS
CS-Q362020-R30 36” 20” 20” 48 1/2” 32” 34 3/4” 8.3 4100 LBS
CS-Q482020-R30 48” 20” 20” 60 1/2” 32” 34 3/4” 11.1 5060 LBS
CS-Q642020-R30 64” 20” 20” 76 1/2” 32” 34 3/4” 14.8 6195 LBS
CS-Q683120-R30 68” 31” 20” 80 1/2” 43” 34 3/4” 24.4 8065 LBS
CS-Q683620-R30 68” 36” 20” 80 1/2” 48” 34 3/4” 28.3 8780 LBS
CS-Q683626-R30 68” 36” 26” 80 1/2” 48” 40 3/4” 36.8 9830 LBS
CS-Q723626-R30 72” 36” 26” 84 1/2” 48” 40 3/4” 39 10255 LBS
CS-Q783626-R30 78” 36” 26” 90 1/2” 48” 40 3/4” 42.3 10 885 LBS
